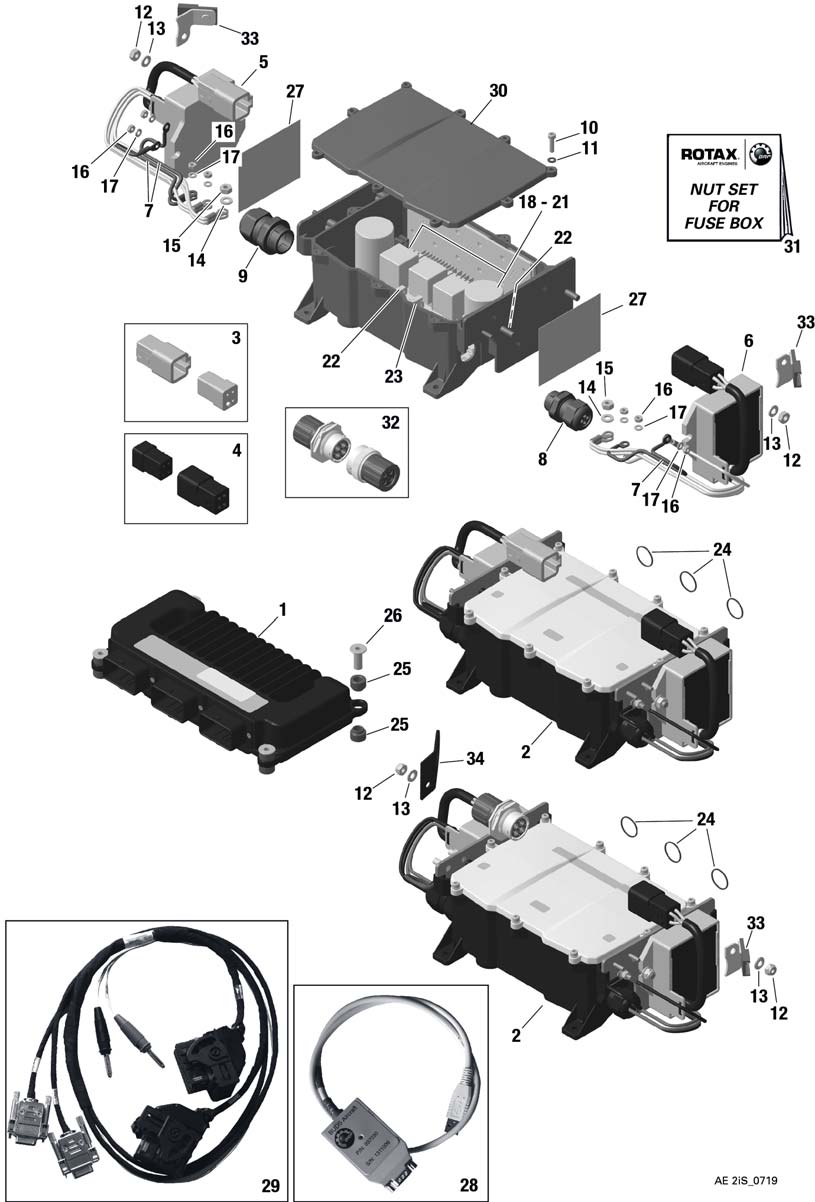

fig. 76-10-00-1

ENGINE CONTROL UNIT, FUSE BOX REGULATOR For ROTAX 912IS

Click on Number to order Part

Click here to see Your Cart
Fig. Part Number Description Unit/Price Add to Cart
1 0 Add to Cart
2 881325 Fuse Box Packaged 3719.43 Add to Cart
3 866422 Connector Set Grey 109.67 Add to Cart
4 866420 Connector Set Black 139.93 Add to Cart
5 864395 Regulator B - Connector Grey 401.97 Add to Cart
6 864392 Regulator A-connector Black 405.38 Add to Cart
7 866440 Mass Cable Assy. 13.63 Add to Cart
8 201370 Skintop Click 20 15.77 Add to Cart
9 201375 Skintop Click 25 15.77 Add to Cart
10 840763 Allen Screw M4x16 Iso 4762-a2-70 51.66 Add to Cart
11 827230 Plastic Washer M4 106.32 Add to Cart
12 842042 Lock Nut M6 3 Add to Cart
13 244213 Washer 6,4 1.24 Add to Cart
14 927573 Washer 5,3 Din 125 0.32 Add to Cart
15 842033 Lock Nut M5 0.32 Add to Cart
16 242538 Lock Nut Din 985-m4-a2 0.32 Add to Cart
17 244078 Washer 4,3 Din 125 8.58 Add to Cart
18- 866450 Mini-fuse 2a 4.04 Add to Cart
19- 866452 Mini-fuse 5a 4.04 Add to Cart
20- 866454 Mini-fuse 7,5a 4.04 Add to Cart
21- 866456 Mini-fuse 10a 6.46 Add to Cart
22- 866490 Ato-fuse 20a 4.04 Add to Cart
23- 866492 Ato-fuse 35a 4.04 Add to Cart
24 931110 O Ring 16.59 Add to Cart
25 201460 Rubber Sleeve 27.77 Add to Cart
26 947540 Spacer 30.38 Add to Cart
27 282870 Heat Plate 28.22 Add to Cart
28 864021 Ecu Reader Level 1 2340 Add to Cart
29 864280 Service Wiring Harness Assy. 313.2 Add to Cart
30 201690 Cover, Fuse Box 183.17 Add to Cart
31 881555 Nut Set Fuse Box 124.76 Add to Cart
32 481510 Connector Set Stator Lane B 515.67 Add to Cart
33 951983 Connector Bracket 54 Add to Cart
34 951981 Connector Bracket 65.91 Add to Cart
